- 【Electric Bike Conversion Kit】: This kit contains almost all the parts you need to modify your bike without the need to purchase them separately. The kit has a compact design and is compatible with most 20in bicycle front wheel sizes on the market.
- 【Strong Power】: Equipped with a 1000W high-efficiency DC brushless motor, it instantly explodes with powerful power to easily cope with the challenges of steep slopes. It can reach a maximum speed of 23.6-27.96 miles/h, reducing travel time and allowing you to experience speed and excitement.
- 【Rear-wheel Drive Design】: The rear-wheel drive design design makes better use of the vehicle's weight distribution, especially when starting and accelerating, and the rear wheels act as drive wheels to provide more grip and traction, which is especially noticeable when climbing hills or carrying heavy loads.
- 【Thoughtful Design】: The pedal assist sensor (PAS) allows you to ride your e-bike without throttle response, ensuring that you can operate your e-bike in two ways. To avoid uncomfortable wrist positions, you just need to pedal whenever and wherever you want.
- 【High Safety】: Motor overheat protection and IP54 waterproof grade can effectively extend the service life of the equipment and improve the safety of using and driving. This kit is mainly made of aluminum and iron with a baking process, which is sturdy and wear-resistant to ensure long-term utility.
Description:
Our e-bike conversion kit is an upgrade solution for cyclists who want extreme performance and a personalized experience. Not only will it dramatically improve the electric power performance of your existing bike, but it will also take your riding experience to a whole new level.
Notes:
Please note that the mileage mainly depends on the capacity of the battery, our products are not equipped with battery.
Details:
LCD Display: It can display the basic information, such as battery indicator, speed, single mileage, total mileage, speed gear, PAS gear, brake signal, cruise function, 6KM/H boost function, and error code. It helps you to know the riding status at any time.
Thumb Throttle: You can easily adjust the motor boost level and precisely control the magnitude of acceleration by simply pressing your thumb, thus increasing the safety and convenience of control while riding.
Application:
This product is suitable for snowmobile and bicycle conversions with a wheel size of 20inch.
Specification:
Material: Iron, Aluminum
Process: Baking
Assembly Required: Yes
Motor Type: Brushless Gearless Motor
Hall Sensor/Temperature Sensor: Yes
Brakes: Low Level
Brake: Disc Brake
PAS: 1:1
Speet: 1.1-4.2VDUAL Mode
Voltage: DC 48V
Power: 1000W
Current: 30±1A
Adaptable Wheel Size: 50.8cm/20in
Wheelbase: 10mm*14mm/0.39in*0.55in
Magnet Height: 30mm/1.18in
Winding: 11*5
Waterproof Grade: IP54
Speed: 520rpm
Max. Speed: 38-45km/23.6-27.96mile/h
Cable Size: 2mm²
Maximum Torque: 40N.m
Gear Opening: 135mm/5.31in
Package Size: 50*50*26cm/19.69*19.69*10.24in
Net Weight: 12kg/26.46lbs

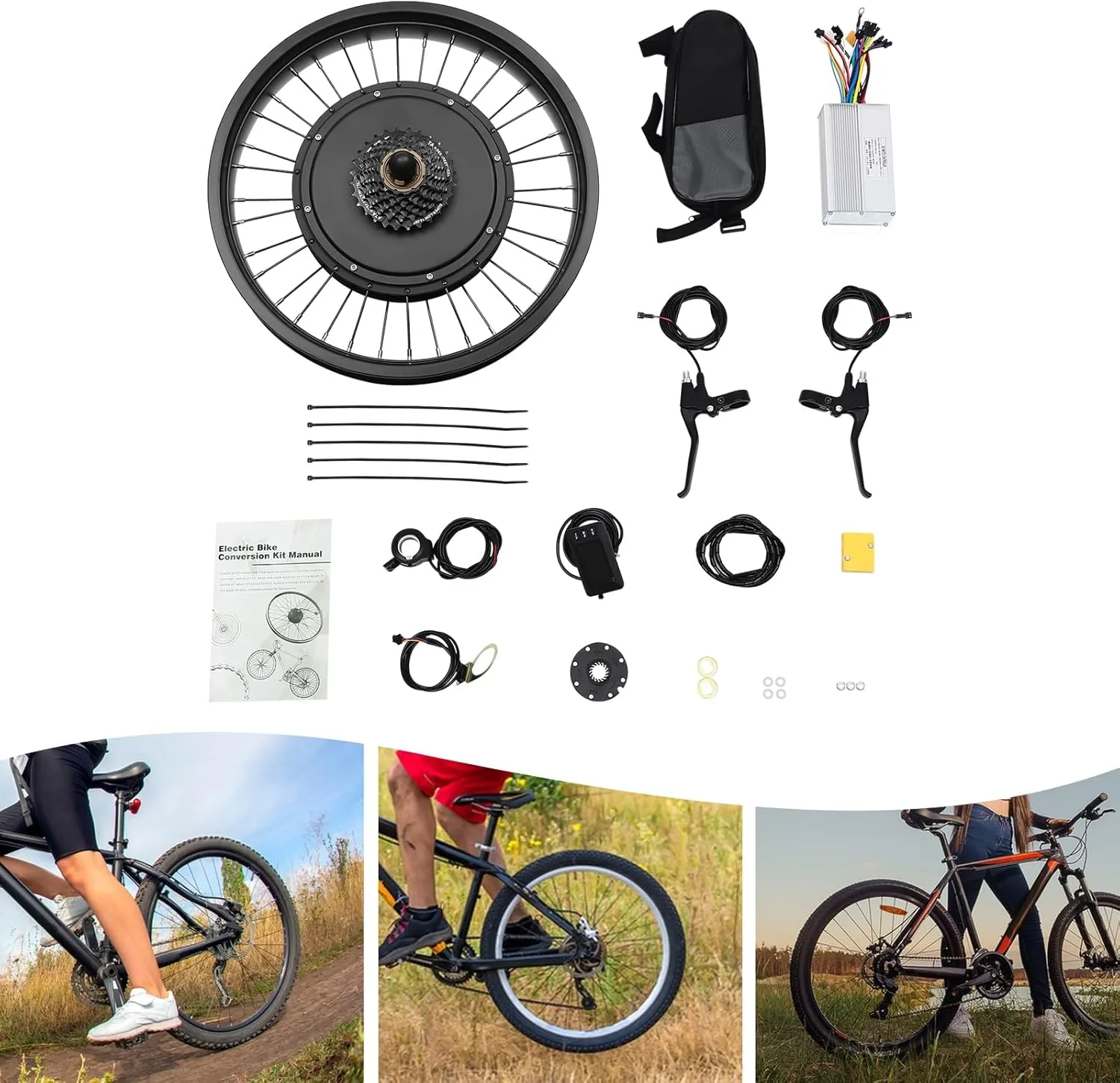

Package Included:
1* Motor Wheel
1* Controller
1* Brake Lever Set
1* Thumb Grip
1* LCD Display
1 Set* Pedal Assist Sensor
1* English Manual
