- 2.25 Total Horsepower (THP) This motor will replace any HP range 1/2-2.25 HP * When motor is running at 115 Volts the total horsepower is 1.50THP
- 115/230 Volt, 17.4/13.5 Max Amps, 1.0 Service Factor
- Full Variable Speed (600-3450 RPM)
- 56J Frame
- Total Enclosed Fan Cooling
- Continuous duty, Class B Insulation
- 5/8" diameter threaded stainless steel shaft

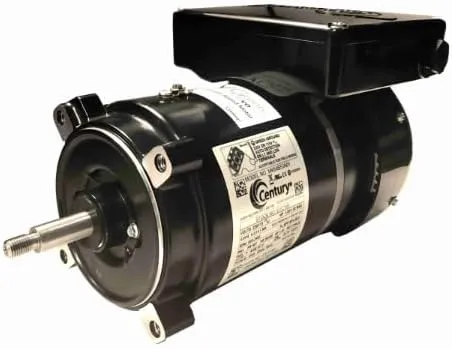

Century Electric VGREEN EVC225 2.25HP Variable Speed Pool Pump Motor, 56J Frame, 115/230 Volt ✅ This motor is compliant for the New 2021 DOE Regulations BENEFITS: Communicates easily with most automation systems leading to no loss of automation system functionality New simplified user interface allows for easier programming and motor setup all with the push of a button Lightweight, compact design, and rotatable mains wiring compartment allow for ease of installation Available in both square flange and C-Face mounting configurations to allow for replacement versatility Water, weather, and UV resistant IPX5 moisture intrusion rating and UV resistant components protect against harsh conditions to extend motor life NOTICE: If the VGreen Evo motor is powered off for any reason, at least 60 seconds must pass before power is reapplied. Failure to provide an adequate delay could result in damage to the motor. When power is applied to the VGreen Evo motor for the first time it will automatically run the programmed default schedule. This feature ensures that the VGreen Evo motor will re-start in the event of a power outage. Swimming pool pump motor. Commonly found on inground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor.
